Decoding Space Travel: The Delta-V Subway Map
Introduction: Charting Your Course to the Cosmos with Delta-V
Space travel isn't just about rockets and spaceships; it's also about understanding the energy needed to get from point A to point B in the vast emptiness of space. Enter the "delta-v subway map," a powerful tool that helps visualize these energy requirements and plan interplanetary journeys. This article will delve into the concept of delta-v, explore the functionality of these maps, and answer common questions, equipping you with a foundational understanding of space mission planning.
"Delta v Subway Map" : What is Delta-V and Why Does it Matter?
Delta-v (?v), which stands for "change in velocity," is the most crucial concept for understanding space mission design. It represents the total amount of velocity change a spacecraft needs to perform all the maneuvers required for a mission, such as escaping Earth's gravity, transferring to another planet, entering orbit around that planet, and eventually returning home (if applicable). Measured in meters per second (m/s) or kilometers per second (km/s), delta-v is essentially the "fuel budget" for your space journey.
- Why is it important? Without sufficient delta-v, a spacecraft simply won't be able to complete its mission. The delta-v requirement dictates the amount of propellant a spacecraft needs to carry, which in turn impacts its size, weight, and overall cost. Therefore, accurate delta-v calculations are critical for mission feasibility. [Alt Text: Illustration of a rocket performing a delta-v maneuver in space.] Caption: Understanding delta-v is fundamental to planning any space mission.
"Delta v Subway Map" : Unveiling the Delta-V Subway Map: Your Guide to Interplanetary Travel

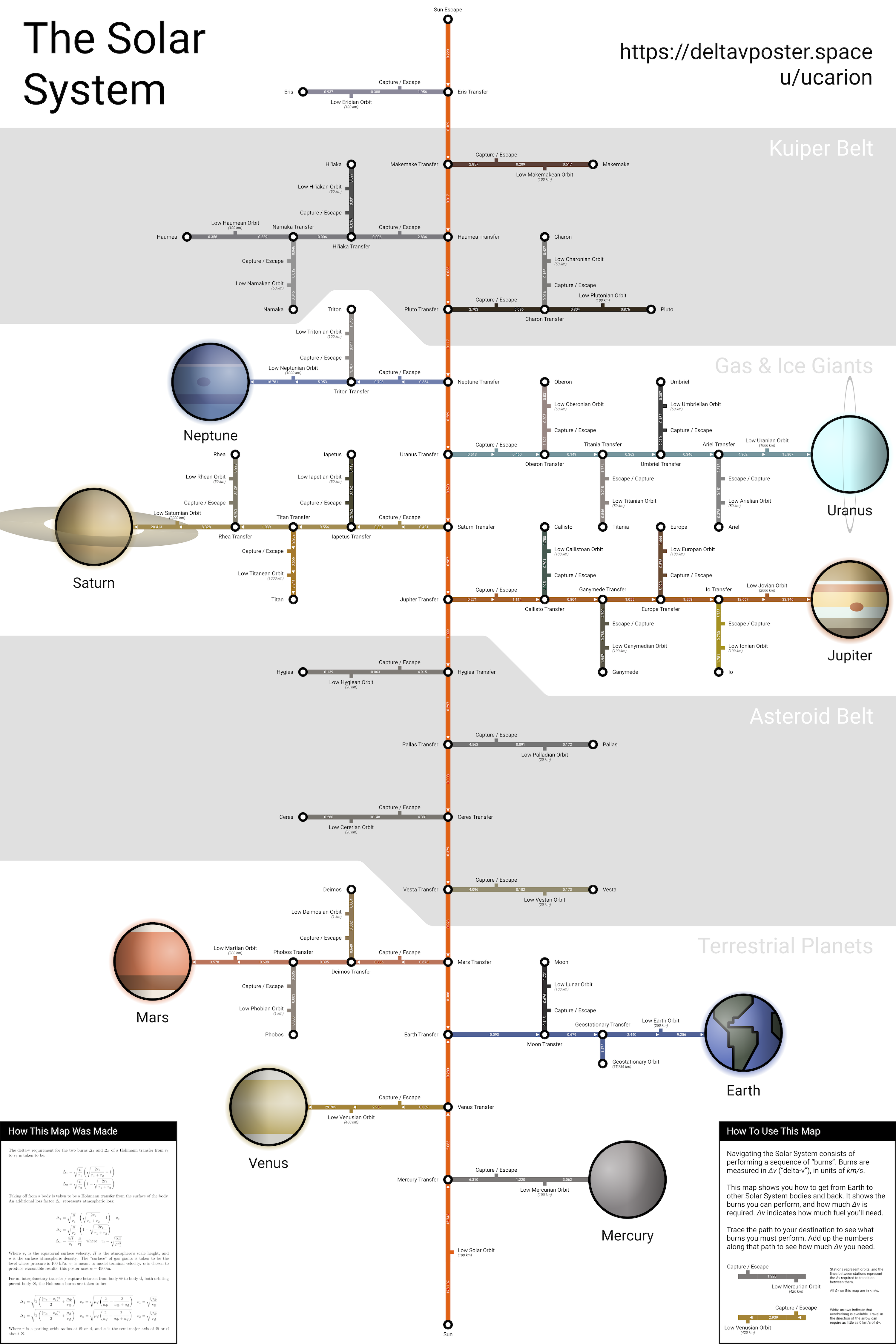

Imagine a subway map, but instead of stations representing locations within a city, the stations represent celestial bodies (like Earth, Mars, the Moon) or orbital points (like low Earth orbit, geostationary orbit). The lines connecting the stations represent the delta-v required to travel between them.
- How does it work? The delta-v subway map simplifies complex orbital mechanics by providing an easy-to-understand visual representation of the energy needed for different transfers. Each "line" on the map is labeled with the approximate delta-v value required for that particular maneuver.
- What does it show? These maps typically illustrate the delta-v needed for:
- Escaping Earth's gravity well.
- Transferring between planets (e.g., Earth to Mars using a Hohmann transfer orbit).
- Entering and exiting orbits around planets or moons.
- Landing on and taking off from planetary surfaces.
"Delta v Subway Map" : Reading the Map: A Practical Example
Let's say you want to plan a mission to Mars. A delta-v subway map will show you the approximate delta-v required for each step:
- Leaving Earth Orbit (LEO): Getting from Earth's surface to Low Earth Orbit (LEO) requires around 9-10 km/s of delta-v.
- Trans-Mars Injection (TMI): To leave Earth's orbit and head towards Mars, you'll need another 3-4 km/s for a Hohmann transfer. This is called the Trans-Mars Injection (TMI).
- Mars Orbit Insertion (MOI): Upon arriving at Mars, you'll need to slow down to enter orbit around the planet, requiring another 1-2 km/s for Mars Orbit Insertion (MOI).

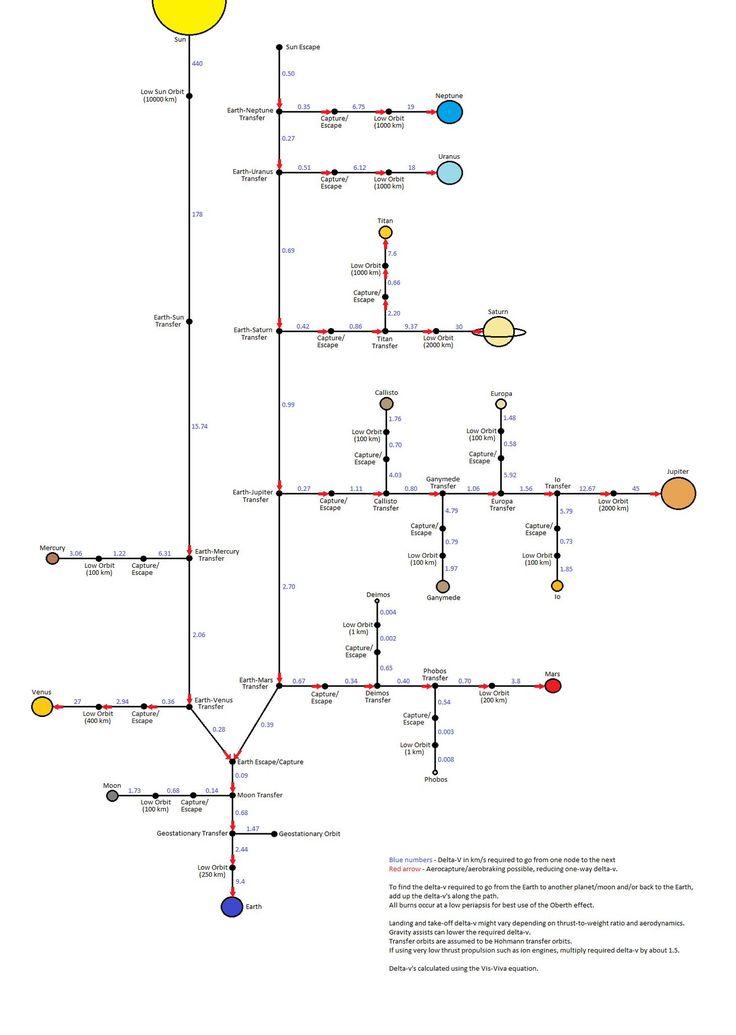

Therefore, a one-way trip to Mars orbit will require approximately 13-16 km/s of delta-v. Returning to Earth would require a similar amount. These numbers are approximations, and the actual delta-v needed can vary depending on the specific trajectory and mission parameters. [Alt Text: A simplified delta-v subway map showing transfers between Earth, Mars, and the Moon.] Caption: Delta-v subway maps provide a visual representation of energy requirements for space travel.
"Delta v Subway Map" : Limitations of the Subway Map
While incredibly useful, delta-v subway maps have limitations:
- Simplifications: They often rely on idealized scenarios like Hohmann transfer orbits, which are fuel-efficient but slow. Real-world missions may use more complex trajectories that require more delta-v but can significantly reduce travel time.
- Gravity Assists: They typically don't account for gravity assists from other planets, which can drastically reduce the delta-v requirements for certain missions.
- Specifics: They don't factor in the specific capabilities of a particular spacecraft or the influence of atmospheric drag for low-altitude orbits.
"Delta v Subway Map" : Utilizing Delta-V Maps for Mission Planning
Delta-v maps are valuable tools for:
- Initial Feasibility Studies: Determining if a mission is even possible within the capabilities of existing or planned spacecraft.
- Propulsion System Design: Selecting the appropriate propulsion system based on the required delta-v.
- Trajectory Optimization: Choosing the most fuel-efficient trajectory for a mission.
- Educational Purposes: Providing a clear and intuitive way to understand the challenges of space travel.
"Delta v Subway Map" : Real-World Applications and Examples
Many space agencies and private companies use delta-v maps in their mission planning.
- NASA's Mars Missions: Delta-v calculations are critical for planning all Mars missions, from rovers like Curiosity and Perseverance to future human missions.
- Commercial Spaceflight: Companies like SpaceX use delta-v analysis to optimize trajectories for cargo deliveries to the International Space Station (ISS) and future missions to the Moon and Mars.
"Delta v Subway Map" : Future Trends and Advancements
The future of delta-v analysis involves more sophisticated modeling and simulation tools that can account for a wider range of factors, including:
- Advanced Propulsion Systems: Development of more efficient propulsion systems, such as ion drives and nuclear propulsion, which can significantly reduce delta-v requirements.
- Improved Trajectory Optimization Algorithms: Development of algorithms that can find even more fuel-efficient trajectories, including those that utilize gravity assists from multiple planets.
- Real-Time Delta-V Monitoring: Developing systems that can monitor the actual delta-v expenditure of a spacecraft in real-time, allowing for adjustments to the mission plan if necessary.
"Delta v Subway Map" : Question and Answer
- Q: Where can I find a delta-v subway map?
- A: A simple search online for "delta-v subway map" will yield numerous results, including images and interactive maps. Be sure to check the source and date of the map to ensure its accuracy.
- Q: Are delta-v maps always accurate?
- A: No, they are approximations. Real-world missions may require more or less delta-v depending on the specific trajectory and mission parameters.
- Q: Do I need to be a rocket scientist to understand delta-v maps?
- A: No! While a deeper understanding of orbital mechanics is helpful, the basic concept of a delta-v map is fairly straightforward. This article should provide a good starting point.
Keywords: Delta-v, space travel, subway map, Hohmann transfer, orbital mechanics, mission planning, NASA, SpaceX, interplanetary travel, propulsion, trajectory optimization.
Summary Question and Answer: What does a delta-v subway map represent, and why is it useful for space mission planning? It represents the energy (delta-v) needed to travel between celestial bodies or orbital points, and it's useful for initial feasibility studies, propulsion system design, and trajectory optimization.
